Description

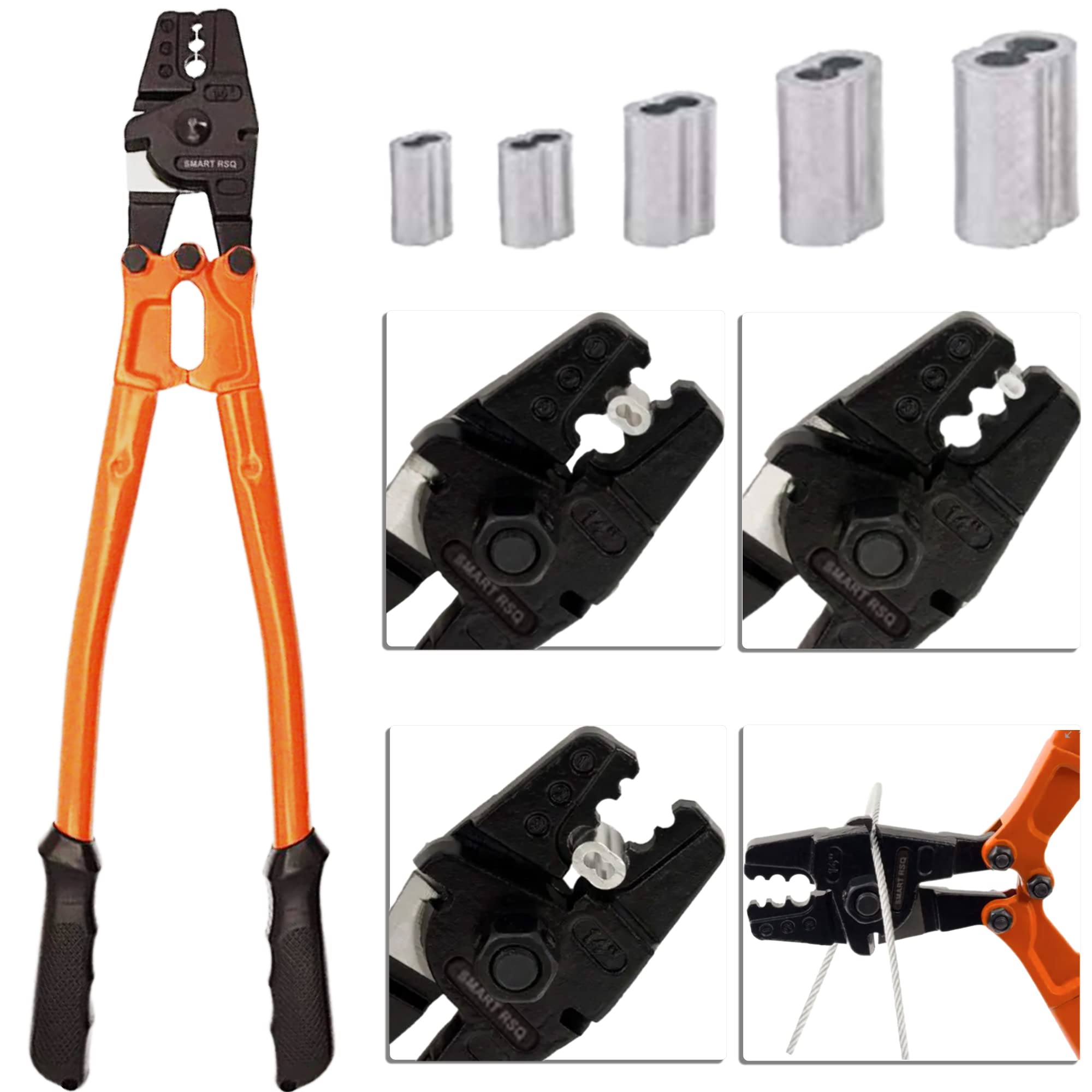

Heavy Duty Crimping Plier
Note:
Use with BH89 and BH189 Series Crimp Inserts
PART NUMBERS
BH300 Crimping Plier Frame
BH301 Crimping Die for 1/8″, 1/16″ & smaller
BH303 Crimping Die for 3/16″
BH304 Crimping Die for 1/4″
4 in 1 Crimping Plier
Note:
Crimps fittings for .020” thru 1/4” sheath
PART NUMBER
BH305 Crimping Plier
Standard Transition Fitting
Note:
Add “-NT” for Unthreaded
PART NUMBERS
BH4020 and-NT = .020″ Tube
BH4040 and-NT = .040″ Tube
BH401 and -NT = 1/16″ Tube
BH402 and -NT = 1/8″ Tube
BH403 and -NT = 3/16″ Tube
BH404 and -NT = 1/4″ Tube
BH406 and -NT = 3/8″ Tube
Standard Strain Relief Spring
PART NUMBER
BH410
Tube Adaptors
Note:
Crimps fittings for .020” thru 1/4” sheath
• The Armor Cable Adaptor Screws onto the Transition Fitting.
• The Armor Cable is Retained in the Other End by Means of Two Socket Set Screws
PART NUMBERS
BH411 Armor Cable Adaptor Zinc-Plated Brass
BH411-SS Armor Cable Adaptor Stainless Steel
Transition Fitting – Armor Cable Adaptor – 3/16 ID x 9/32 OD Armor Cable P/N BH601
Miniature Transition Fitting
Note:
Transition Fittings of 303 or 304 Stainless Steel
Fitting OD: .313” ID: .238”
| PART NUMBER | FITTING LENGTH | TUBE DIAMETER |
| BHA10049-1 | 1.25″ | .040″ |
| BHA10049-2 | 1.25″ | .062″ |
| BHA10049-2-SP (No Thread) | 1.5″ | .062″ |
| BHA10049-3 | 1.25″ | .125″ |
| BHA10049-4 | 1.25″ | .1875″ |
Miniature Stainless Steel Strain Relief Spring
PART NUMBER
BHA10049-S
| Miniature Sub-Miniature Transition Fittings | |
|---|---|
  |
Note:
Transition Fittings of 303 or 304 Stainless Steel
Non-Threaded
PART NUMBERS
.250″ OD x .218″ ID x 1 1/4″ Long
BHA10606-0 = Undrilled
BHA10606-1 = .040″ Tube
BHA10606-2 = .062″ Tube
BHA10606-3 = .125″ Tube
.130″ OD x .100″ ID x 3/4″ Long
BHA10631-1 = .020″ Tube
BHA10631-2 = .040″ Tube
BHA10631-3 = .062″ Tube
