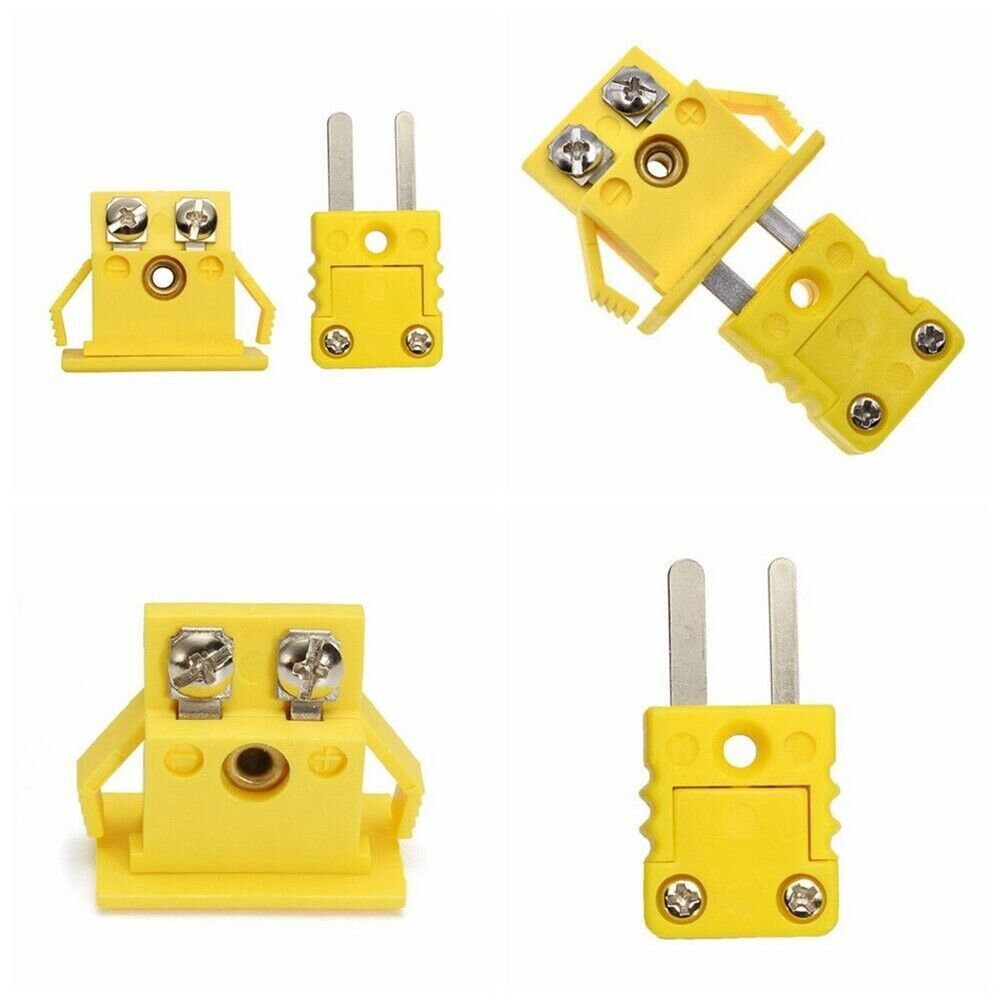

Panel Mounting Connectors

Thermocouple Accessories, Thermocouples Accessories

Panel Mounting Connectors

Specifications

• Mount Directly Into Panels Without Brackets or Accessories
• Molded-On Integral Mounting Ears
• Low-Temp Cases of Glass-Filled Nylon Temperature Rating of 350° F. (400° F. Max.)
• High-Temp Cases of Ryton® R-4 (Reddish-Brown Only) Temperature Rating of 500° F (550° F Maximum)
• Polarity and Calibration Marked
• Same Features as Non-Panel Counterparts
• Accessories Fit in the Same Manner as Non-Panel Counterparts

Description

Available Plugs and Jacks

ANSI Calibration = Case Color

Type J = Black

Type K = Yellow

Type T = Blue

Type R/S = Green

Type E = Purple

Type N = Orange

Type U = White

	Part Name and Series Numbers
	PART NUMBERS (Insert Calibration In Space After Number) BH28 ____ (J/K/T/R/U/E/N) Standard Bezel Jack BH29 ____ (J/K/T/R/U/E/N) Hi-Temp Bezel Jack BH30 ____ (J/K/T/R/U/E/N) Standard Panel Jack BH31 ____ (J/K/T/R/U/E/N) Jab-In Panel Jack BH32____ (J/K/T/R/U/E/N) Standard Circ. Panel Jacks BH33____ (J/K/T/R/U/E/N) 3-Pin Panel Jack BH34____(J/K/T/R/U/E/N) Hi-Temp Panel Jack BH35____ (J/K/T/R/U/E/N) Hi-Temp Circ. Panel Jacks BH36____ (J/K/T/R/U/E/N) Hollow Pin Panel Plug BH37____ (J/K/T/R/U/E/N) Solid Pin Panel Plug BH38____(J/K/T/R/U/E/N) Jab-In Panel Plug BH39____(J/K/T/R/U/E/N) Hi-Temp Panel Plug
	______________________________________________ Standard Panel Jack BH30 & BH34 Series
	______________________________________________ Standard Panel Plug BH36, BH37, & BH39 Series
	______________________________________________ Jab-In Panel Jack BH31 Series
	______________________________________________ Jab-In Panel Plug BH38 Series
	______________________________________________ 3-Pin Panel Jack BH33 Series
	______________________________________________ Standard Circular Jack BH32 & BH35 Series
	______________________________________________ Standard Bezel Jack BH28 & BH29 Series

Calibration

J
K
T
R (S)
U
E
N

Common Name

Iron/Constantan
Chromel/Alumel
Copper/Constantan
Platinum/Rhodium
Copper/Copper (uncompensated)
Chromel/Constantan
Nicrosil/Nisil

Case Color

Black
Yellow
Blue
Green
White
Purple
Orange
