Description
Metric – English Adaptors
Note:
Convert Metric Threads to 1/8″ NPT
Adds 1″ to Bayonet Adaptor Length
PART NUMBER – METRIC THREAD
BHMEA – A-1 = 10 x 1.5 mm
BHMEA – B-1 = 12 x 1 mm
BHMEA – C-1 = 12 x 1.5 mm
BHMEA – D-1 = 14 x 1.5 mm
BHMEA – E-1 = 14 x 2 mm

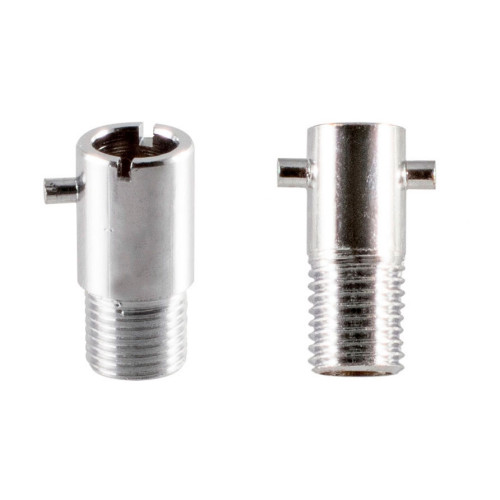

Bayonet Adaptors
ADD PREFIX “B”
Fixed Bayonet Fitting for 3/16″ Thermocouples
Note:
Lock Cap, S/S Spring, and 2 Braze Rings
PART NUMBER
BH430
Adjustable Bayonet Fitting for 1/8″ or 3mm Thermocouple.
PART NUMBERS
BH439 = 1/8″ Adjustable Fitting w/ Brass Ferrule
BH439-NY = 1/8″ Adjustable Fitting w/ Nylon Ferrule
BH439-SS = 1/8″ Adjustable Fitting w/ Stainless Ferrule
BH439-3mm = 3mm Adjustable Fitting w/Brass Ferrule
BH439-3mm-S = 3mm Adjustable Fitting w/ S/S Ferrule
BH439-M = Same as BH439 except w/ Metric Lock Cap
Springs
PART NUMBERS
BH432 = S/S Spring, 3/16″ Probe, 1 5/8″ long
BH432-1 = S/S Spring, 1/8″ Probe, 1 5/8″ long
BH432-2 = S/S Spring, 3/16″ Probe, 2″ long
BH432-4 = S/S Spring, 1/4″ Probe, 2″ long
BH432-96 = S/S Spring, 3/16″ Probe, 96″ long
BH433 = “17-7PH” Spring, 3/16″ probe, 1 5/8″ long
BH433-1 = “17-7PH” Spring, 1/8″ Probe, 1 5/8″ long
BH435 = 12″ long S/S Spring Only
BH435-P = 8″ long S/S Spring Only, Bell Shaped End
Caps
PART NUMBERS
BH434 = Bayonet Lock Cap Only, 3/16″ Probe
BH434-SS = S/S Bayonet Lock Cap Only, 3/16″ Probe
BH434-M = Metric (Double Slot) Lock Cap, 3/16″ Probe
BH434-1 = Bayonet Lock Cap Only, 1/8″ Probe
BH436 = Bayonet Lock Cap to run on BH601 armor
BH436-SS = S/S Bayonet Lock Cap to run on BH601 armor
BH436-M = Metric (Double Slot) Lock Cap for BH601 armor
BH436-1 = Bayonet Lock Cap to run on BH600 armor
BH436-5/32 = Bayonet Lock Cap to run on BH60-5/32 armor
H436-M-1 = Metric (Double Slot) Lock Cap for BH600 armor
H437 = Bayonet Lock Cap to run on BH435 Spring
H437-SS = S/S Bayonet Lock Cap to run on BH435 Spring
H437-M = Metric (Double Slot) Lock Cap for BH435 spring
Rings
PART NUMBERS
BH438 Braze Ring (S/S) for 3/16″ Probe
BH438-1 Braze Ring (S/S) for 1/8″ Probe
BH438-4 Braze Ring (S/S) for 1/4″ Probe
