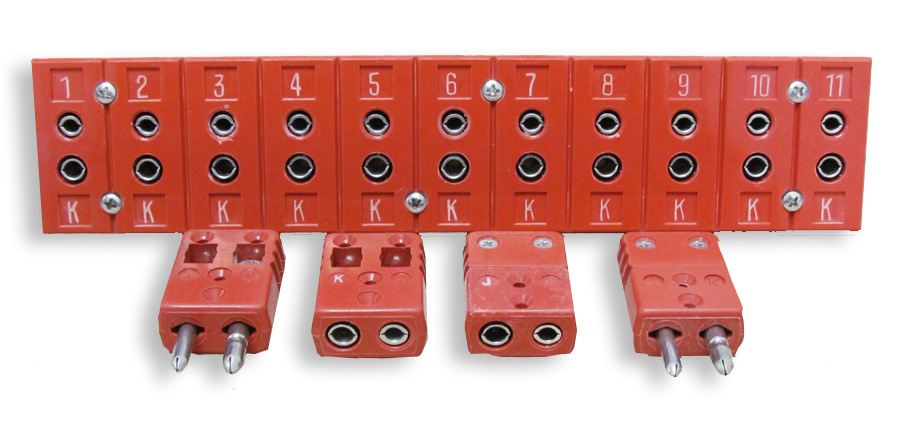

Panel Mounting Connectors Ultra High Heat

Specifications

• Glass Filled Thermoset Bodies (Reddish-Brown Color)
• Temperature Rating of 800° F Continuous or 1000° F. Intermittent
• Hollow Pins in Plugs Standard Solid Pins Available on Request
• Jack is Spring Loaded with High Temp Spring
• Polarity and Calibration Marked
• Knurled Finger Grips

• Same Features as Non-Panel Counterparts
• Accessories Fit in the Same Manner as Non-Panel Counterparts

Available Plugs and Jacks

ANSI Calibration = Case Color

Type J = Black

Type K = Yellow

Type T = Blue

Type R/S = Green

Type E = Purple

Type N = Orange

Type U = White

	Ultra-High Temp Thermocouple Connectors Part Name and Series Numbers
	PART NUMBERS (Insert Calibration In Space After Number) BHTR12______ (J/K/T/R/U/E/N) Plug, Hollow Pins BHTR13______ (J/K/T/R/U/E/N) Plug, Solid Pins BHTR22______ (J/K/T/R/U/E/N) Jack
