ADD PREFIX “B” TO PART NUMBERS TO ORDER

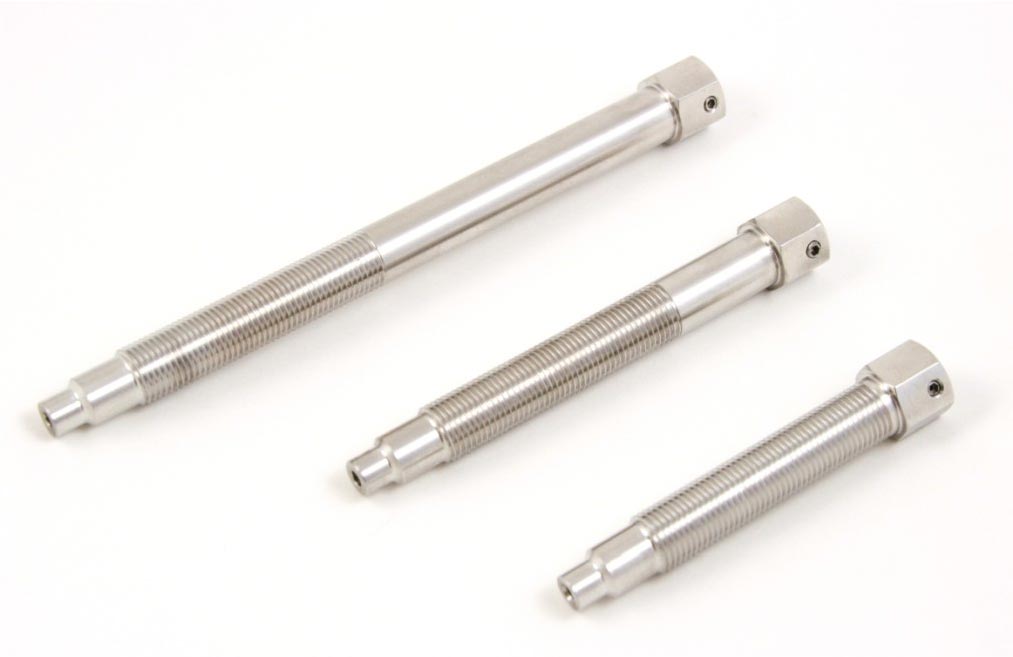

Thermocouple Melt Bolts
Specifications:
• Basic Head Counterbored for H601 Armor, to be Brazed or Cemented in Place, if desired
• Machined of Solid 304 S/S Bar
• Industry Standard Tip Dimensions
• 1/2-20 UNF Threads, 2 1/4″ Minimum
• BH460 Series has 1/8″ Tip ID for 1/8″ Thermocouple
• BH461 Series has 1″ Long x 1/4″ OD x 1/8″ ID (Teflon Insert included)
• Not Drilled (Blank) Bolts Available (“-ND” Designation)
• Head tapped for 1/8″ NPT (“-1/8″ Designation)
• 3″, 4″, 6″, 8″, 10″, and 12” Lengths Standard (Special Lengths Available)
• Special configurations Available – Inquire
“TA” Head
For hard Mounting Std. Connectors. 1/8’ Tube Adaptor included.
For Dual Adaptor Add -D to the part number.
“AR” Head
Same as Basic Head, but with 2 Set Screws for retaining BH601 armor.
ADD PREFIX “B” TO PART NUMBERS TO ORDER
Nozzle Bolts
PART NUMBERS
BH470-2 (upper image)
BH470 (lower image)
