Thermocouple Panels and Panel Boxes

Panel Outlet Boxes

• 3/4″ NPT Inlets
• Use 2-3/4″ x 4-1/2″ Standard Panels
• 3/4″ – 1/2″ Bushing Available, (PART# BHFT10)

Molded of Glass-Reinforced Nylon

Part Number – BH500

Accepts:
Up to 5 BH28, BH29 Bezel Mount Series Jacks
Up to 6 BH30, & BH31 Series Jacks
Up to 5 BH33 Series Jacks
Up to 6 BH130 & BH131 Series Jacks

Molded of Glass-Reinforced Nylon

Part Number – BH501

Accepts:
Up to 4 BH28, BH29 Bezel Mount Series Jacks
Up to 4 BH30, BH31, & BH33 Series Jacks
Up to 5 BH131 Series Jacks
Up to 6 BH130 Series Jacks

Molded of Glass-Reinforced Nylon

Part Number – BH502

Accepts:
Up to 5 BH28, BH29 Bezel Mount Series Jacks
Up to 6 BH30, & BH31 Series Jacks
Up to 5 BH33 Series Jacks
Up to 6 BH130 & BH131 Series Jacks

Standard Panels for Outlet boxes

Standard Panels

ADD PREFIX “B” TO PART NUMBERS TO ORDER

Other Panels for BH28, BH29, BH30, BH31 and BH33 Panel Jacks
Others available – Contact Bluewater Heater

ADD PREFIX “B” TO PART NUMBERS TO ORDER

Standard 2-Pin

PART NUMBER# BH551

Standard 3-Pin

PART NUMBER# BH551-1

Jab in Panel Jack

PART NUMBER# BH31

Standard Panel Jack

PART NUMBER# BH30

Bezel Jack

PART NUMBER# BH33

Miniature Panels for Outlet boxes

• .090 Thick aluminum, 2-3/4″ x 4-1/2″
• Complete with all holes to mount panel jacks to panel and to mount panel to box.

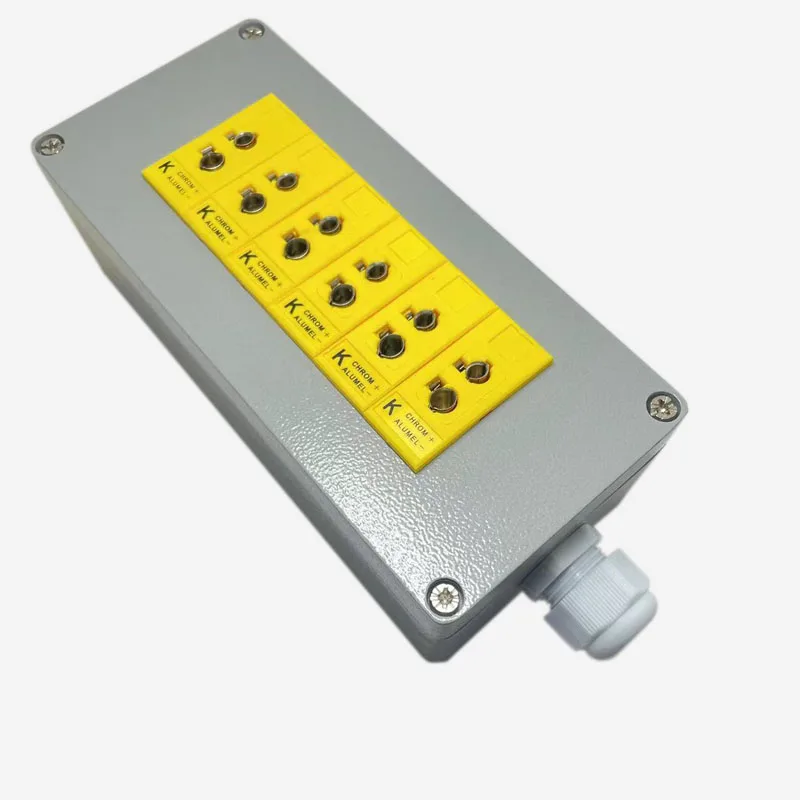

Outlet Box with Six Position Panel

ADD PREFIX “B” TO PART NUMBERS TO ORDER

Other Panels for BH130 and BH131 Miniature Panel Jacks
Others available – Contact Bluewater Heater

ADD PREFIX “B” TO PART NUMBERS TO ORDER

2-Pin Panel Jack

PART NUMBER BH130

3-Pin Panel Jack

PART NUMBER# BH131
