Nylon Barrier Terminal Strips & Lugs

Specifications

• Made of the same glass-filled Nylon used in our thermocouple connectors (350° F. – 400° F. Max.)
• Similar to Cinch type 141 or equivalent, with 27/64″ screw spacing in each section, with 6-32 terminal screws
• Nuts for the terminal screws are pressed into the back of the terminal strips. There are no terminal lugs or connecting strips between the terminal screws in each section on the basic H221-XX and H222-XX barrier terminal strips
Stacks Image 4601

Description

Stacks Image 4597

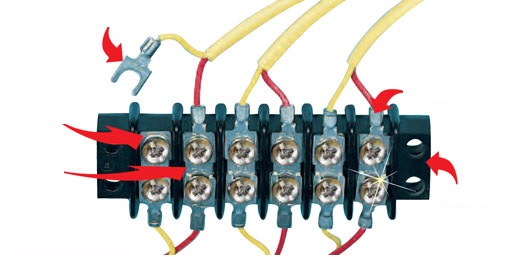

  • Series H221 – Screws are not installed but are supplied in a separate bag ready for installation of the terminal lugs.
  • Series H222 – Screws are installed (there is no lug between them in each section).
  • Series H223 – Has nickel plated copper lugs installed in each section. For non-thermocouple applications.
  • Series H224 – Has thermocouple compensating lugs installed, as specified.

Stacks Image 4601

Lug Type

• Compensated Terminal Lugs to Fit Barrier Terminal Blocks.
• Compensated Spade and Ring Lugs to Accept AWG 18 Wire and Smaller.
• All Lugs Alloy Marked.

Stacks Image 4611Terminal Lugs

Stacks Image 4617Spade Lugs

Stacks Image 4623Ring Lugs
