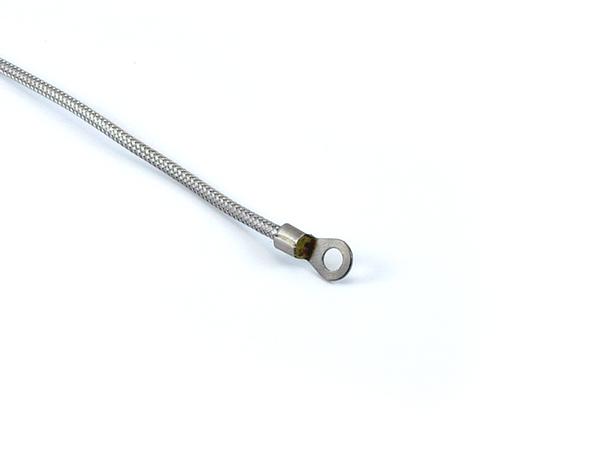

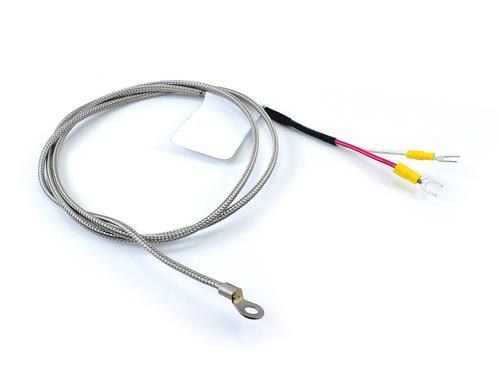

Washer Style Thermocouple

Washer Style Thermocouples Standard Specifications

  • 3/16″ (.188″ ID)
  • 5/16″ (.328″ ID)
  • 24 ga. fiberglass leads with SS overbraid
  • Grounded construction
  • Spade lugs

Options

  • 2 wire or 3 wire RTD
  • Polarized plug or jack
  • 20 ga. lead wire
  • Additional lead lengths available
  • Custom orders welcome

Termination Options

  • Stripped Leads
  • Spade Lugs
  • Mini Plug
  • Mini Jack
  • Standard Plug
  • Standard Jack

Type Options

  • Type J
  • Type K
  • Type T
  • RTD
  • Grounded
  • Ungrounded

Description

 3/16″ Stud Size
JWN36-G1-24R1
JWN48-G1-24R1
JWN60-G1-24R1
JWN72-G1-24R1
JWN96-G1-24R1
JWN120-G1-24R1
KWN36-G1-24R1
KWN48-G1-24R1
KWN60-G1-24R1
KWN72-G1-24R1
KWN96-G1-24R1
KWN120-G1-24R1
Type
J
J
J
J
J
J
K
K
K
K
K
K
Lead Length
36”
48”
60”
72”
96”
120”
36”
48”
60”
72”
96”
120”
5/16″ Stud Size
JWQ36-G1-24R1
JWQ48-G1-24R1
JWQ60-G1-24R1
JWQ72-G1-24R1
JWQ96-G1-24R1
JWQ120-G1-24R1
KWQ36-G1-24R1
KWQ48-G1-24R1
KWQ60-G1-24R1
KWQ72-G1-24R1
KWQ96-G1-24R1
KWQ120-G1-24R1
