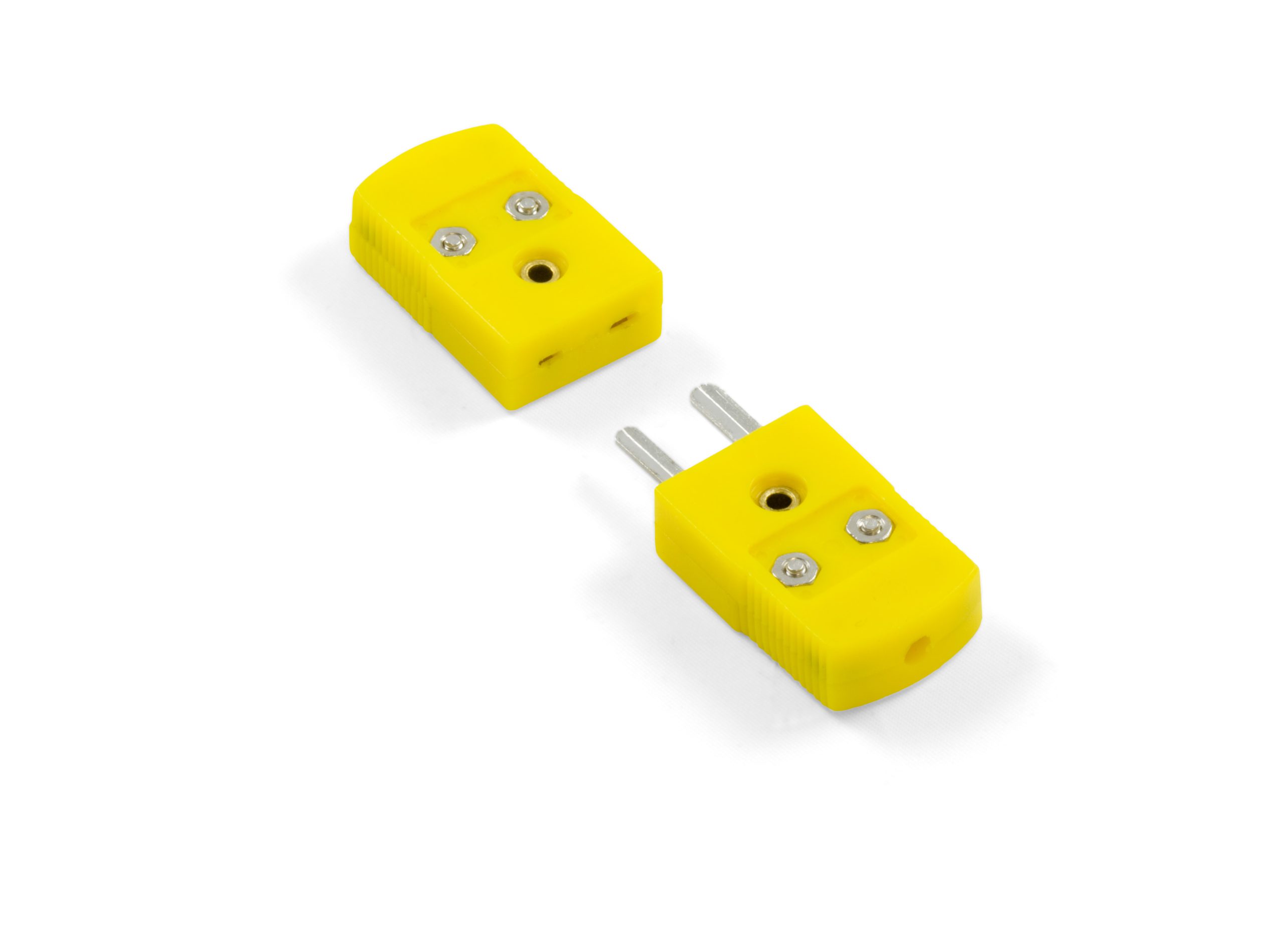

Standard Thermocouple Connectors
,

Standard Thermocouple Connectors

Specifications

• Standard Cases of Color Coded Glass Filled Nylon Temperature Rating of 350 F. (400 F. Max.)
• Hi-Temp Cases of Ryton R-4 (Reddish-Brown Only) Temperature Rating of 500 F. (550 F. Max.)
• Hollow Pins Rolled from .020″ Sheet
• Solid Pins Machined from Solid Bar Stock
• Polarity and Calibration Marked
• Compatible with Similar Standard Connectors
• Knurled Finger GripsNote: Specify “partial” if connectors are to be supplied without two nuts in the case without the two cover screws, with covers packed separately ready for installation of the cable clamps and tube adaptors. Specify “unassembled” if covers and screws are not installed but packed separately.

Available Plugs and Jacks

ANSI Calibration = Case Color

Type J = Black

Type K = Yellow

Type T = Blue

Type R/S = Green

Type E = Purple

Type N = Orange

Type U = White

Standard Plugs and Jacks
Accepts Standard Tube Adapters, Cable Clamps, Adapter Inserts, Braze Inserts, and Crimping Inserts
BH10___ (J/K/T/R/U/E/N) Plug w/Hollow Pins
BH11___ (J/K/T/R/U/E/N) Plug w/Solid Pins
BH12___ (J/K/T/R/U/E/N) Plug w/Hollow Pins & Hi-Temp Case
BH13___ (J/K/T/R/U/E/N) Plug w/Solid Pins & Hi-Temp Case
BH20___ (J/K/T/R/U/E/N) Jack
BH22___ (J/K/T/R/U/E/N) Jack w/Hi-Temp Case
Stacks Image 220Stacks Image 222

3-Pin Plugs and Jacks

Accepts Standard Tube Adapters, Cable Clamps, Adapter Inserts, Braze Inserts, and Crimping Inserts
PART NUMBERS (Insert Calibration In Space After Number)
BH16___ (J/K/T/R/U/E/N) Plug, Solid Pins
BH17___ (J/K/T/R/U/E/N) Plug, 2 Hollow Pins
BH25___ (J/K/T/R/U/E/N) Jack
Stacks Image 231Stacks Image 233

Jab-In Plugs and Jacks

Cases of Glass Filled Nylon/ Pins and Sockets Machined from Solid Thermocouple Bar Stock/
Standard Units Accept Lead Wire to 14 Gauge/ Type K Units Available for 8 Gauge

PART NUMBERS (Insert Calibration In Space After Number)

BH14____ (J/K/T/R/U/E/N) Plug, Solid Pin
BH14K-8-GA Plug Type K, 8 gauge wire
BH24____ (J/K/T/R/U/E/N) Jack
BH24K- 8-GA Jack, Type K, 8 gauge wire

Stacks Image 242Stacks Image 244
Calibration

J
K
T
R (S)
U
E
N

 Common Name

Iron/Constantan
Chromel/Alumel
Copper/Constantan
Platinum/Rhodium
Copper/Copper (uncompensated)
Chromel/Constantan
Nicrosil/Nisil

 Case Color

Black
Yellow
Blue
Green
White
Purple
Orange
