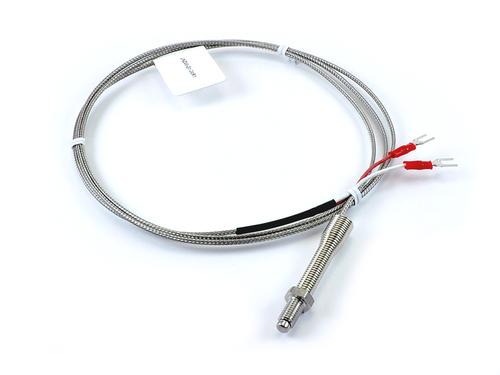

Shallow Nozzle Thermocouple

Shallow Nozzle Thermocouple Standard Specifications

  • 1/4-28 N F thread
  • 24 ga. fiberglass leads with stainless steel braid
  • Spade lugs
  • Grounded construction

Options

  • M6 x 1 thread
  • M8 x 1.25 thread
  • 2 wire RTD
  • Polarized plug or jack
  • 20 ga. lead wire
  • Additional lead lengths available
  • Custom orders welcome

Termination Options

  • Stripped Leads
  • Spade Lugs
  • Mini Plug
  • Mini Jack
  • Standard Plug
  • Standard Jack

Type Options

  • Type J
  • Type K
  • Type T
  • RTD
  • Grounded
  • Ungrounded

Description

J Type

JNZ48-G1-24R1
JNZ72-G1-24R1

Lead Length

48
72

Thread Size

1/4-28 NF
1/4-28 NF

Dimension (A)

.375
.375

Dimension (B)

.455
.455

K Type

KNZ48-G1-24R1
KNZ72-G1-24R1
