PM PLUS™ PID & Integrated Limit Controller

Available on backorder

Contact us for price and availability

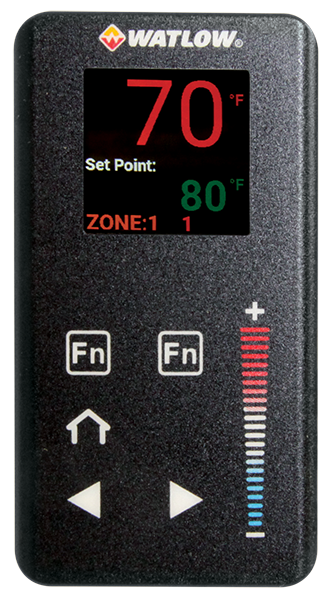

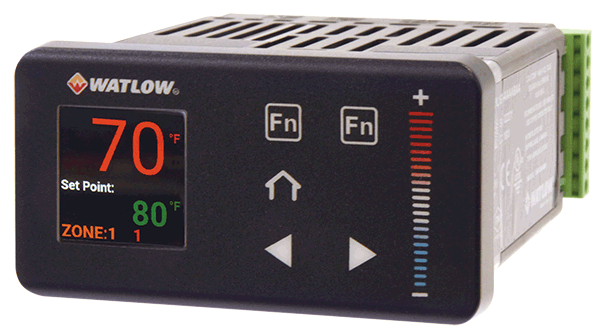

Now available in 1/8 DIN horizontal and vertical package sizes

Watlow’s PM PLUS®, the enhanced EZ-ZONE® PM, is now more intuitive and features an enhanced interface for easier programming and readability with a SMOOTH-TOUCH™ keypad creating an industry leading user experience.  Watlow SELECT™ Standard SELECT® lead times may be temporarily unavailable. Use the Visual Designer™ to view current lead times.

Description

The PM PLUS is backwards compatible with legacy EZ-ZONE PM controllers but offers many user upgrades including an intuitive menu flow allowing the controller to be easily configured. It also continues to offer the industry leading Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes. The PM PLUS improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product. Like the original EZ-ZONE PM, the PM PLUS can be ordered as a PID controller, or an integrated controller with multiple functions combined into one.

Communication Protocols:
Bluetooth
Modbus® RTU
EtherNet/IP™
Modbus® TCP
PROFIBUS DP
DeviceNet™
SAE J1939 CAN Bus
Standard Bus
Click link below for Specifications, Downloads & FAQ’S
