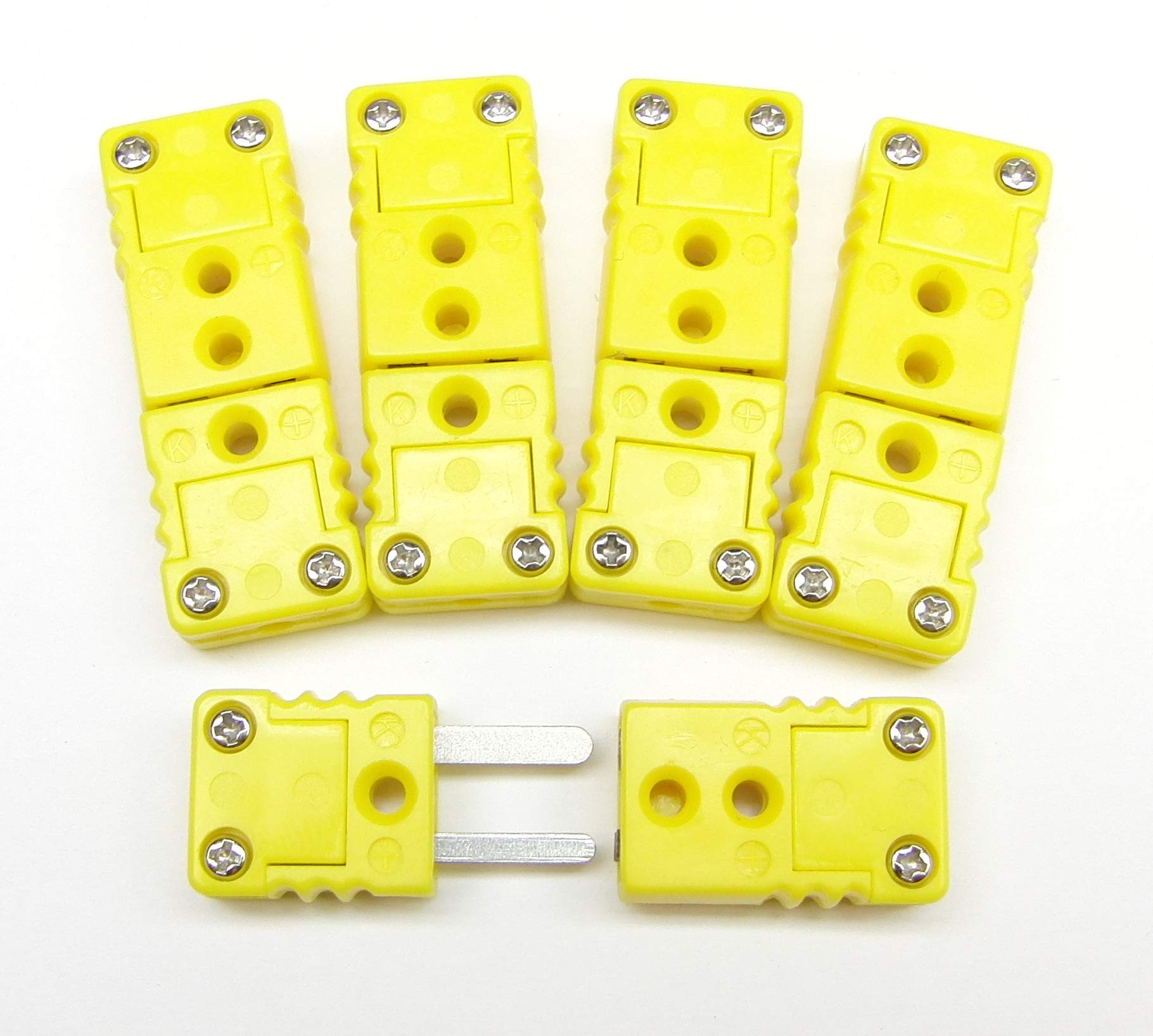

Miniature Thermocouple Connectors

Specifications

• Standard Cases of Color Coded Glass Filled Nylon Temperature Rating of 350 F. (400 F. Max.)
• Hi-Temp Cases of Ryton® R-4 (Reddish-Brown Only) Temperature Rating of 500 F. (550 F. Max.)
• Polarity and Calibration Marked
• Negative Terminals Marked

Note:
Specify “partial” if connectors are to be supplied without two nuts in the case without the two cover screws, with covers packed separately ready for installation of the cable clamps and tube adaptors. Specify “unassembled” if covers and screws are not installed, but packed separately

Description

Available Plugs and Jacks

ANSI Calibration = Case Color

  • Type J = Black
  • Type K = Yellow
  • Type T = Blue
  • Type R/S = Green
  • Type E = Purple
  • Type N = Orange
  • Type U = White

2-Pin Connectors
PART NUMBERS (Insert Calibration in Space After Number)
BH110____ (J/K/T/R/U/E/N) Miniature Plug
BH113____ (J/K) Miniature Plug, Hi-Temp Case
BH120____ (J/K/T/R/U/E/N) Miniature Jack
BH122____ (J/K) Miniature Jack, Hi-Temp Case
Stacks Image 245Stacks Image 247

3-Pin Connectors

PART NUMBERS (Insert Calibration in Space After Number)
BH116_____ (J/K/T/R/U/E/N) Miniature 3 – Pin Plug
BH116U-HT Miniature 3 – Pin Plug, Type U, Hi-Temp Case, Nickel Plated Pins
BH126 _____ (J/K/T/R/U/E/N) Miniature 3-Pin Jack
BH126U-HT Miniature 3 – Pin Jack, Type U, Hi-Temp Case, Nickel Plated Pins
Stacks Image 256Stacks Image 258

Calibration

J
K
T
R (S)
U
E
N

Common Name

Iron/Constantan
Chromel/Alumel
Copper/Constantan
Platinum/Rhodium
Copper/Copper (uncompensated)
Chromel/Constantan
Nicrosil/Nisil

Case Color

Black
Yellow
Blue
Green
White
Purple
Orange
