***Contact us for pricing***
Conversion Cables – OEM to OEM

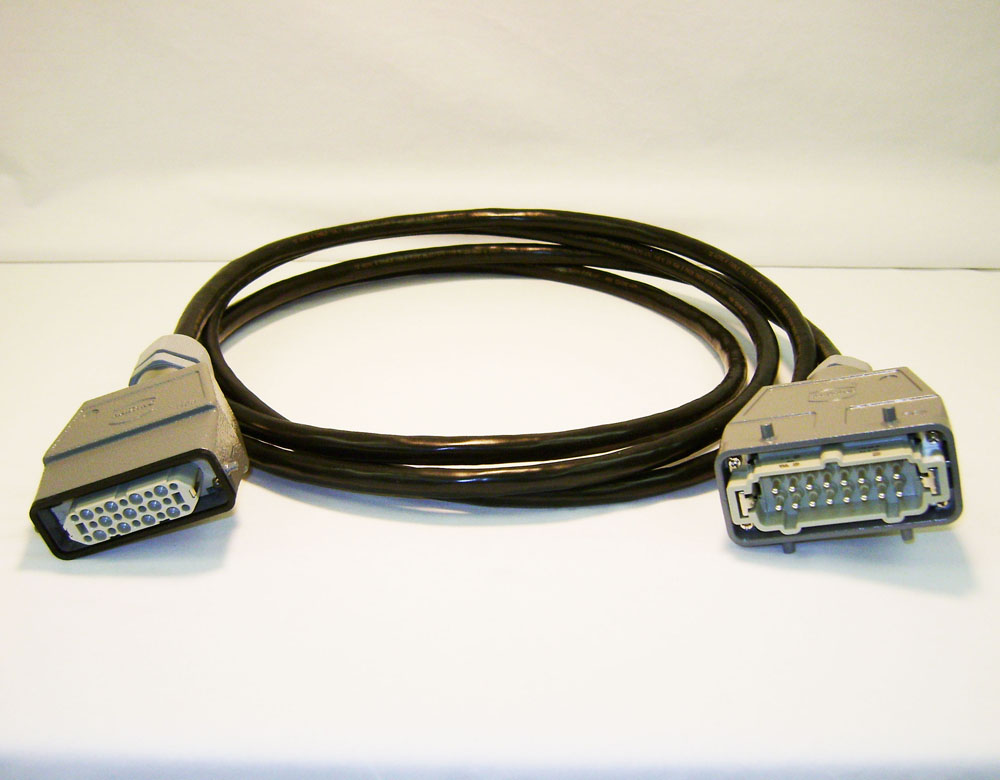

8 Zone Thermocouple Cable – 20′ O.A.L
- #20 AWG 105°C PVC Type “JX” Multi-Pair Cable
- Conversion Cable – †”G” Series® Mainframe End to “Double Latch” Mold End
- NEMA 6 Strain Reliefs – Both Ends
Description
Our conversion cables mate with standard †”G” Series® mainframes and OEM mold connectors that incorporate a “double latch” mold connector.
Bluewater Heaters’ thermocouple cables are constructed of high quality, durable and flexible 105°C PVC jacketed cable.
Conductors are #20 AWG solid type “JX” extension grade thermocouple, twisted pairs with overall foil shield and drain.
(+) White = Iron and (-) Red = Constantan (Cu/Ni)
*Stranded cable available upon special request.
*Alternative connector configurations available upon request.
Additional information
| Weight | 3.0 kg |
|---|---|
| Dimensions | 65.0 × 35.0 × 15.0 cm |
