$3,799.99
– Part#BWMF24

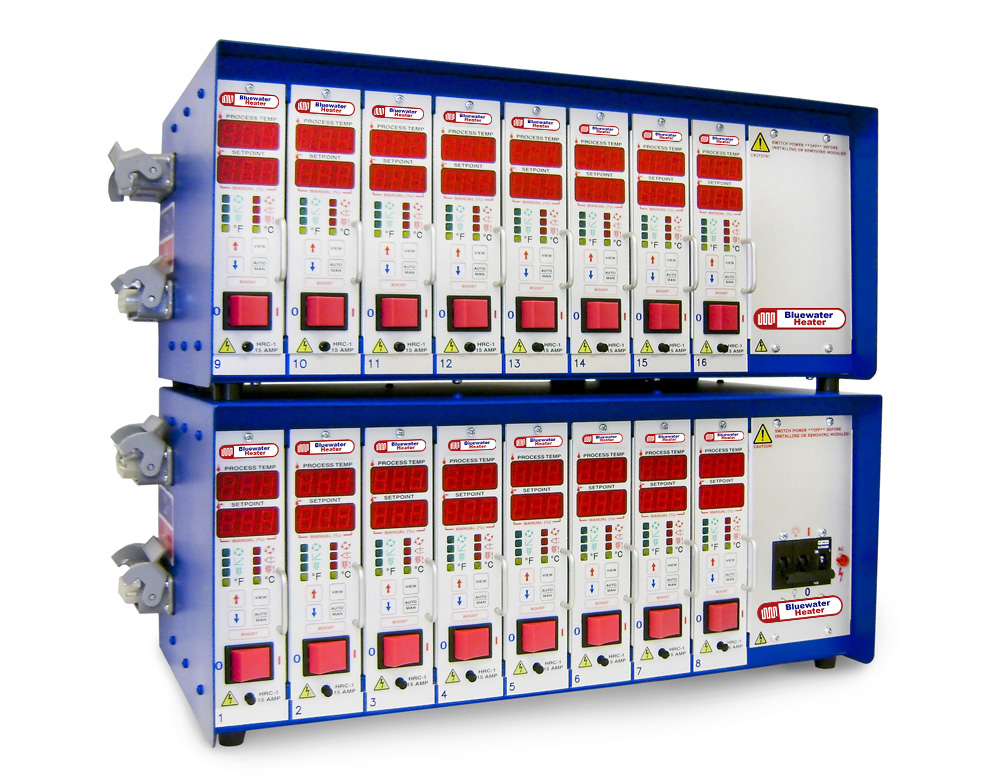

(Picture shown is a 16zone mainframe)
24 Zone Standard Modular Hot Runner Temperature Control Mainframe
Without ESA Sticker, ESA sticker available for an extra charge
2x Stacked 12 zone mainframes with 1x 70amp circuit breaker
Our standard style mainframe control systems were designed to provide affordable and compatible solutions for hot runner control requirements
Our standard mainframe control systems were designed to provide affordable and compatible solutions for hot runner control requirements. They are compatible with all industry standard mainframe systems, modular temperature controllers and cables. The MF mainframe assemblies combine safe and proven electrical sub-assemblies in an all steel enclosure creating a very durable and dependable system. Every mainframe is power and load tested prior to shipment. Our mainframes have a two year limited warranty. They are compliant with ESA/CSA, RoHS and WEEE requirements and European CE EMC and low voltage directives.
*Alternative connector and zone configurations available upon request.
Note: Mainframes do not include modular temperature controllers as shown.
Compatible with all industry standard style temperature control modules and mainframe systems
Industry standard mold power output and thermocouple input connectors
Standard wiring configuration: 3Ø 4 Wire, 208-240VAC
Standard main circuit breaker: 70 amp (upgrades available upon request)
Optional wiring configurations:
Style ‘B’: 3Ø 5 Wire, 380-415VAC (Europe)
Style ‘C’: 1Ø 4 Wire, 440VAC
Style ‘D’: 1Ø 3 Wire, 208-240VAC (Standard 1Ø)
Type ‘J’ Thermocouple standard (Type ‘K’ available upon request)
CIK Communications Buss available
MFTA-205 Audible Alarm Accessory available
| Weight | 40.0 kg |
|---|---|
| Dimensions | 30.0 × 75.0 × 25.0 cm |
