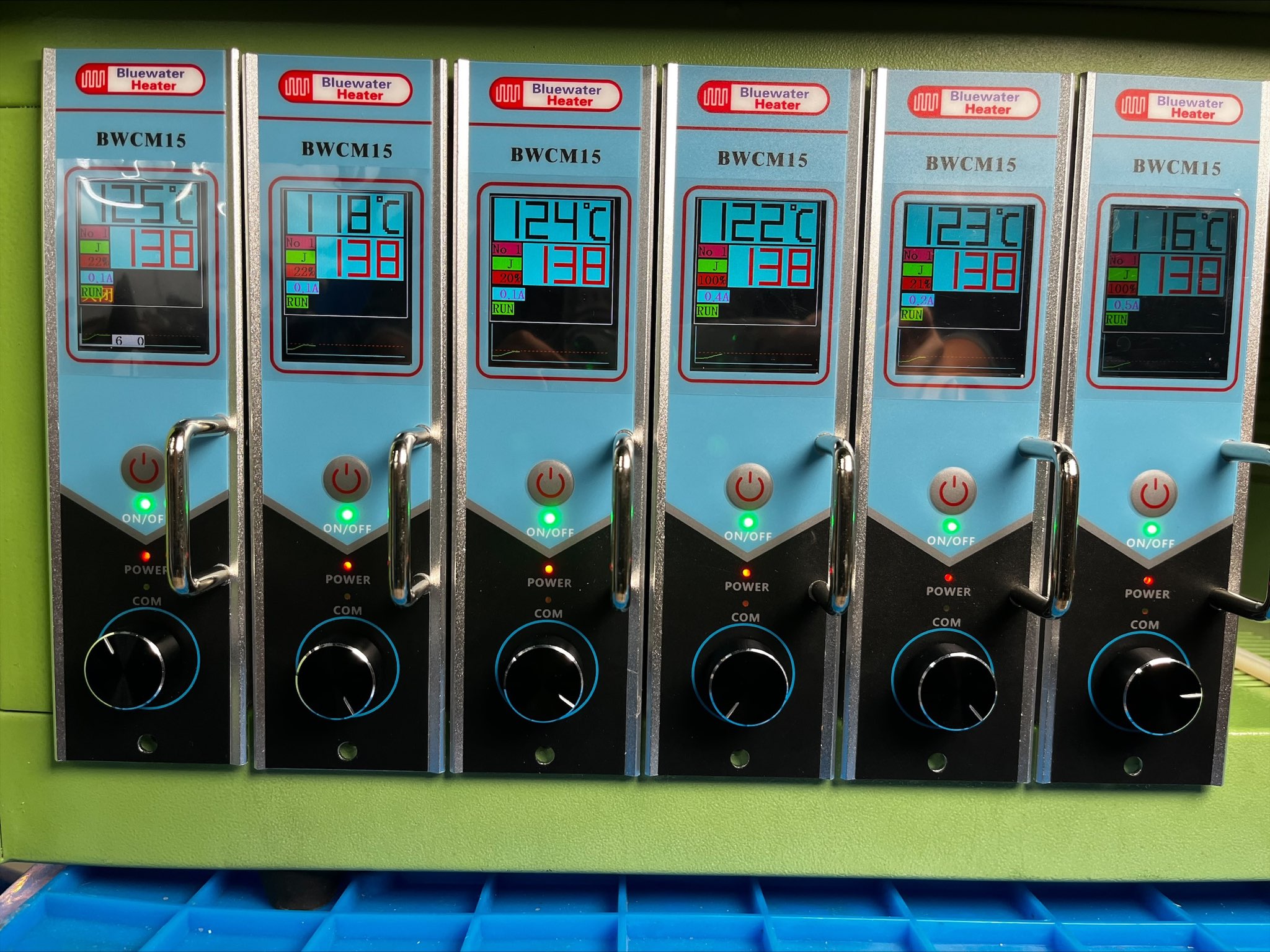

SIMPLY The BEST Temperature Control Module on the market
- Build in Heat Sink
- Nano coating edge card for TRUE Anti-Arc
- Reverse TC fault detect on stand-by mode / prevent heater burn-out
- Amp display on LCD screen
- Auto power switch from 110V-240V
Description
Ⅰ、Specification
1、Temperature control difference:±1℃
2、Cold junction compensation:≤±1℃temperature coefficient
3、Range of temperature control: J & K type thermocouple 0-400℃
4、Maximum power output:3KW
4、Maximum current output：15A
6、Alarm range:0-100℃set at discretion
7、Application of thermocouple type :K,J type
8、Digital PID control
9、Operational environment: -10℃——50℃, relative humidity 35-85%RH, non-corrosiveness
Ⅱ、Function
1、Large screen LCD display
2、Colored light alarm
3、Current and output ratio display
4、Fuse damaged tips
5、Thermocouple fault detection
6、Heating pipe fault detection
7、temperature monitor of Silicon controlled rectifier
8、Fault detection of Silicon controlled rectifier
9、High quality industrial components suitable for any environment
10、Output controlled by Linear voltage
11、Maximum current storage
12、Over voltage alarm
Alarms:
Thermocouple disconnection、
Thermocouple reverse connection
Heating pipe disconnection
Heating pipe short circuit
Fuse damage
Manual work
Soft-start
J type
K type
Alarm
① SCR short circuit, need repaired
② SCR open circuit, need repaired
Additional information
| Weight | 1.0 kg |
|---|---|
| Dimensions | 20.0 × 20.0 × 10.0 cm |
